Laboratory Centrifuge Bottles Manufacturer

Compare centrifuge bottle series by material and body format.

Low-Speed Centrifuge Bottles

PP

PP Low-Speed Centrifuge Bottles

PP

Rectangular Low-Speed Centrifuge Bottles

High-Speed Centrifuge Bottles

PP

PP High-Speed Sealing-Cap Centrifuge Bottles

PP

PP High-Speed Centrifuge Bottles

PC

PC High-Speed Centrifuge Bottles

PPCO

PPCO High-Speed Centrifuge Bottles

HDPE

HDPE Flat-Bottom High-Speed Centrifuge Bottles

PPCO

PPCO Four-Port High-Speed Centrifuge Bottles

PP Low-Speed Centrifuge Bottles

SKU & Specifications

SKU image preview

PP Low-Speed Centrifuge Bottles SKU specifications
Mouth(mm)	Diameter(mm)	Height(mm)
38	60	124
38	79	140
53	80	137
53	79	133
53	84.5	138.5
53	85	135
38	95	135
38	97	132
53	98.5	139
53	98.5	140
53	98.5	145
53	97.5	171

Rectangular Low-Speed Centrifuge Bottles SKU specifications
Material	Length(mm)	Width(mm)	Height(mm)
PP	156	94.5	167
HDPE	156	94.5	167
PP	186	98	193
PP	175	114	185
PP	174	110	213

PP High-Speed Sealing-Cap Centrifuge Bottles SKU specifications
Closure	Mouth(mm)	Diameter(mm)	Height(mm)
Blue double cap	70	97	148
Blue double cap	70	97	170
Blue double cap; non-graduated	70	97	183
Blue double cap; graduated	73.4	97	187.7
White double cap	73	94.8	218.5
Black single cap	70	97	131
Black single cap	70	97	155
Black single cap	70	97	167
Black double cap	37.5	69	178
Black double cap	37.5	72	178
Black double cap	37.5	61.8	130
Blue four-port cap	73.4	97	169.7
Blue rotor-style cap	72	97	195.25
Gray sealing/double cap	72	97	220
Gray sealing/double cap	—	60.5	141
Gray sealing/double cap	—	68.5	172
Gray cap	37.2	56.3	112
Gray cap	37.2	60	122.7
Gray cap; graduated	37.2	61.8	128.3
Gray cap; graduated	37.2	69	168
Gray cap	37.2	69.4	170.2
Gray cap	37.2	73.8	170.8
Standard high-speed closure	37.2	96.8	166.7

PP High-Speed Centrifuge Bottles SKU specifications
Mouth(mm)	Closure	Diameter(mm)	Height(mm)
27.2	Clear cap	61.5	123.2
37.4	Clear cap	60.5	122
37.4	Graduated body	61.8	127.2
38	Clear cap	60	124
37	Graduated body	69	167
37	Clear cap	69	169
37	Clear cap	73.4	169.5
38	Clear cap	79	135
38	Clear cap	95	135
38	Clear cap	97	132
53.1	Not specified	60	124.2
52	Short body	69	153.9
52	Tall body	69	167.2
52	Short body	72.5	154.5
52	Not specified	74	168
53	Clear cap	79	133
53	Clear cap	85	135
53	Clear cap	98.5	140
64	Graduated body	102	173
53	Single cap	98	170
74	Single cap	130	197

PC High-Speed Centrifuge Bottles SKU specifications
Closure	Mouth(mm)	Diameter(mm)	Height(mm)
White double cap	73	84.8	218.5
Gray double cap	72	96.5	178
Blue rotor cap	72	97	195.25
Gray cap	37.2	69.4	170.2
Eight-lug cap	37.5	69	173
Flat white cap	52	69	151
Clear cap	37	73.4	169.5
Gray double cap	53	69.8	169.5
Gray cap	37	61	125
Clear cap	37	61	125
White cap	37.5	61.7	126.5
Wide-mouth clear cap	37.4	60.5	122
Clear cap	27.2	61.5	123.2
Gray double cap	37.9	61.5	141.5
Black double cap	37.5	61.8	130
Gray single cap	37.2	60	122.7
Eight-lug cap	37.5	61.5	126
White cap	37.5	69	173
Wide-mouth clear cap	52	72.5	154.5
Wide-mouth clear cap	52	69	167.2
Clear cap	37	69	169.1
White cap	53	69.5	158.3
Wide-mouth clear cap	52	74	168
Black double cap	37.5	69	179
Gray single cap	37.2	73.8	170.8
Gray double cap	53	69.8	169.5
Eight-lug cap	37.5	73	173
White cap	37.5	73	173
Blue four-port double cap	73.4	97	169.7
Blue four-port double cap	73.4	97	187.7
Flat white cap	52	95	176
Clear cap	64	102	173

PPCO High-Speed Centrifuge Bottles SKU specifications
Mouth(mm)	Diameter(mm)	Height(mm)
37.5	60	126.5
37.5	68.5	153.5
37.5	69	173
37.5	73	173
37.5	61.5	131
37.5	69	170.5
37.5	61.5	131
37.5	69	170.5
37.5	61.5	126.5
37.5	69	173
37.5	73	173

HDPE Flat-Bottom High-Speed Centrifuge Bottles SKU specifications
Mouth(mm)	Diameter(mm)	Height(mm)
50	95	173
53	69	165
37	60	141
37	60	120
37	60	125

PPCO Four-Port High-Speed Centrifuge Bottles SKU specifications
Closure color	Mouth(mm)	Diameter(mm)	Overall height
Blue	73.4	97	187.7mm
Blue	73.4	97	169.7mm
Black	73.4	97	187.7mm
Black	73.4	97	169.7mm

Product description

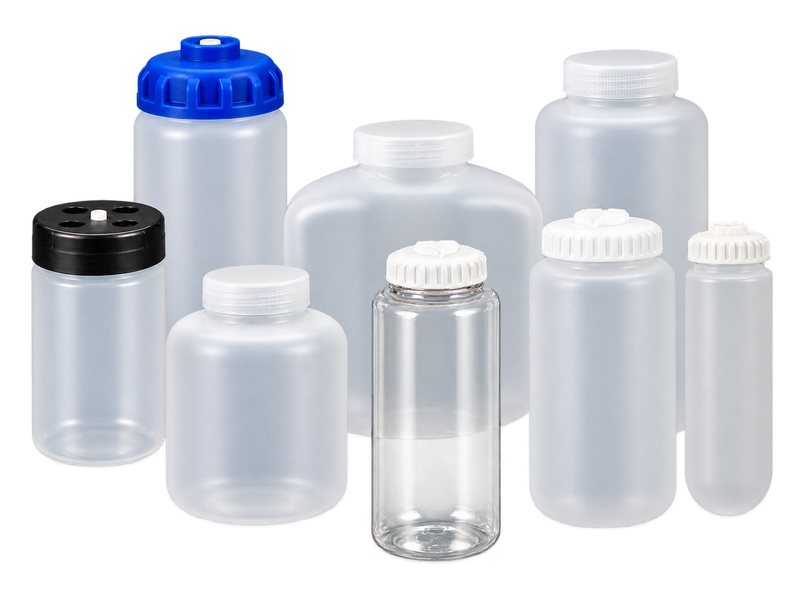

For centrifugation and liquid-sample separation, capacities across these bottle series range from 150 mL to 2.4 L. The collection includes polypropylene (PP), polypropylene copolymer (PPCO), polycarbonate (PC) and high-density polyethylene (HDPE) bodies. These laboratory sample containers are also commonly described as centrifuge vessels.

Services & Certification

Mold Design

Support from bottle and closure design through mold design, prototype sampling, approved samples, and agreed test criteria.

Sterilization Requirements Review

Irradiation and autoclave options can be evaluated according to the selected resin, product format, and application.

Packaging Design

Custom packaging structures, labels, logos, and product printing are available for OEM and private-label programs.

Testing Support

Dimensional, fit, closure, and leak-test requirements can be evaluated according to the selected product and application.

ISO 13485:2016

About IDEAL

Manufacturing with documented controls.

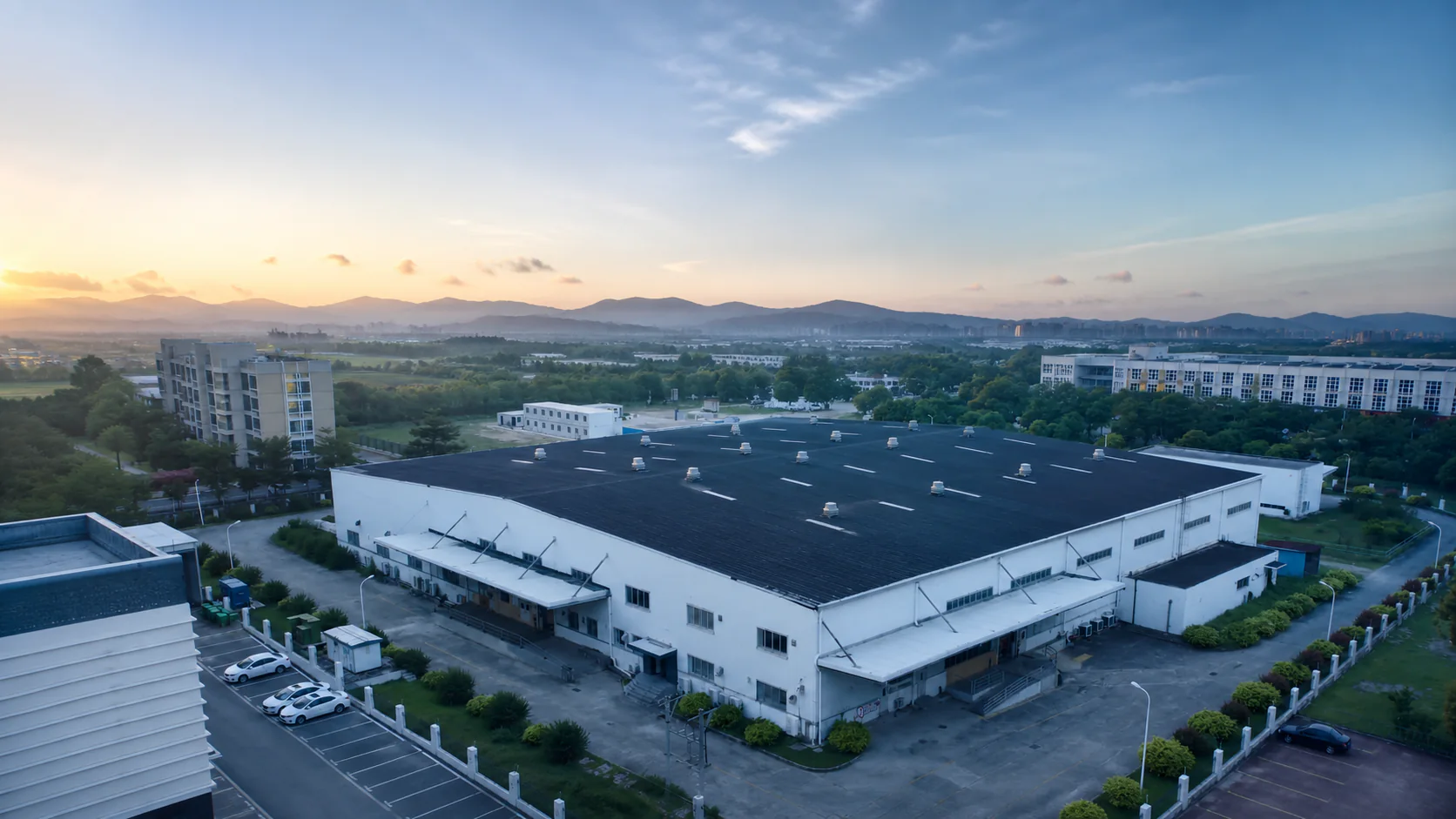

Zhuhai Ideal Biotech Co., Ltd. manufactures laboratory plasticware and diagnostic plastic components for laboratories, distributors, and OEM customers worldwide.

Our capabilities include precision injection molding, assembly, packaging, and product testing, supported by controlled processes from development through production.

Private-label services cover product customization, packaging, printing, and brand presentation for a wide range of market requirements.
