Mold Design
Support from bottle and closure design through mold design, prototype sampling, approved samples, and agreed test criteria.
PC High-Speed Centrifuge Bottles
Capacity range
200–1000 mL
- Material
- PC
- Height
- 122–218.5 mm
- Diameter
- 60–102 mm
OEM / ODM Customization
Ask about custom color, marking, packaging, dimensions, and closure options.
Ask about sample availability
Factory Price
Available Product Variants
Select a capacity to view the full-size SKU image.
Specifications
SKU image preview

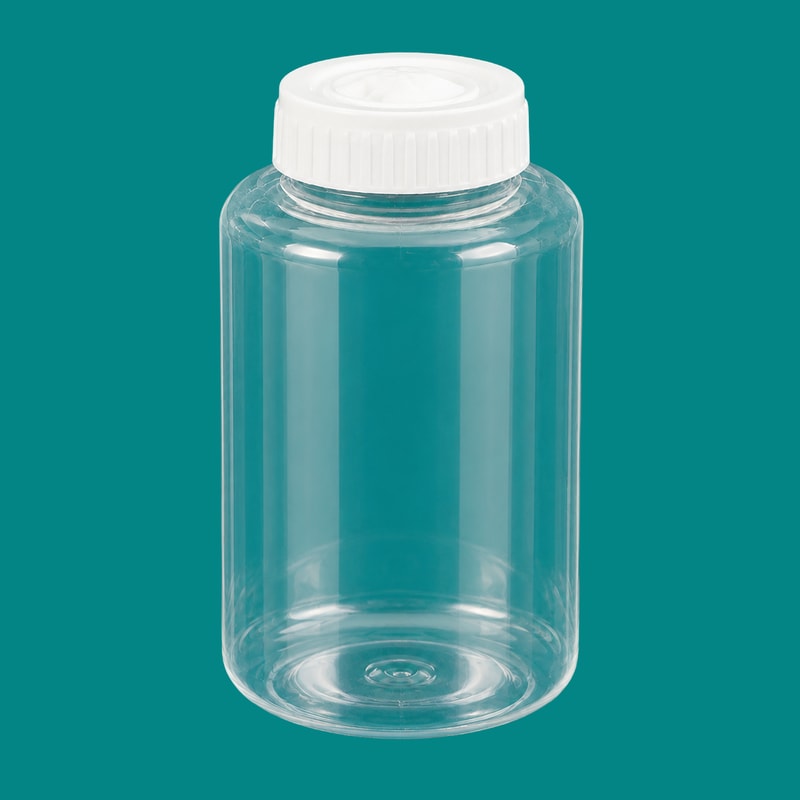

SKU 823621000 mL
| SKU / Capacity | Closure | Mouth(mm) | Diameter(mm) | Height(mm) |
|---|---|---|---|---|
| White double cap | 73 | 84.8 | 218.5 | |
| Gray double cap | 72 | 96.5 | 178 | |
| Blue rotor cap | 72 | 97 | 195.25 | |
| Gray cap | 37.2 | 69.4 | 170.2 | |
| Eight-lug cap | 37.5 | 69 | 173 | |
| Flat white cap | 52 | 69 | 151 | |
| Clear cap | 37 | 73.4 | 169.5 | |
| Gray double cap | 53 | 69.8 | 169.5 | |
| Gray cap | 37 | 61 | 125 | |
| Clear cap | 37 | 61 | 125 | |
| White cap | 37.5 | 61.7 | 126.5 | |

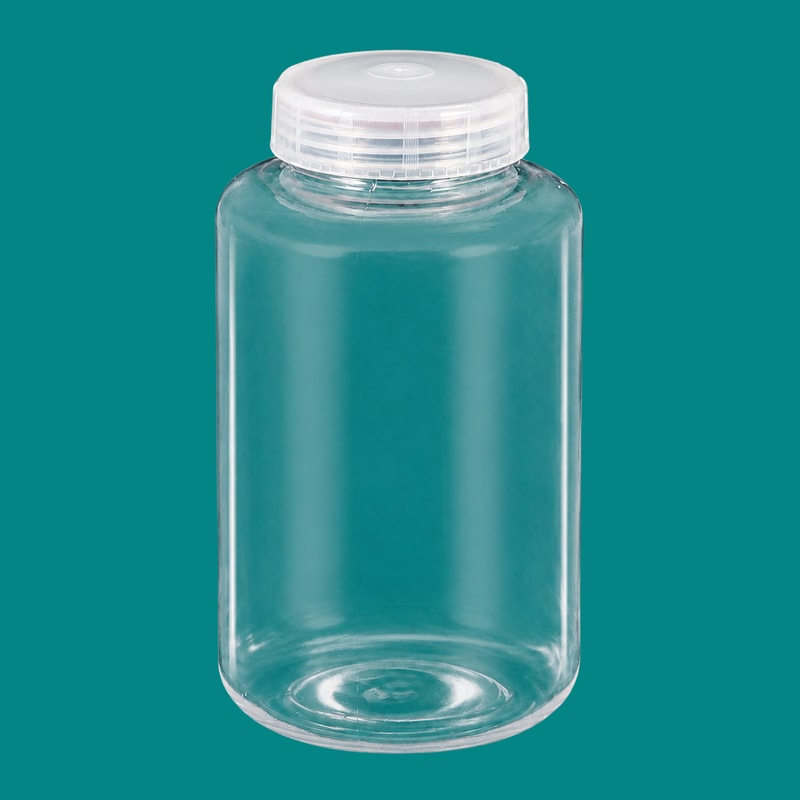

| Wide-mouth clear cap | 37.4 | 60.5 | 122 | |
| Clear cap | 27.2 | 61.5 | 123.2 | |
| Gray double cap | 37.9 | 61.5 | 141.5 | |

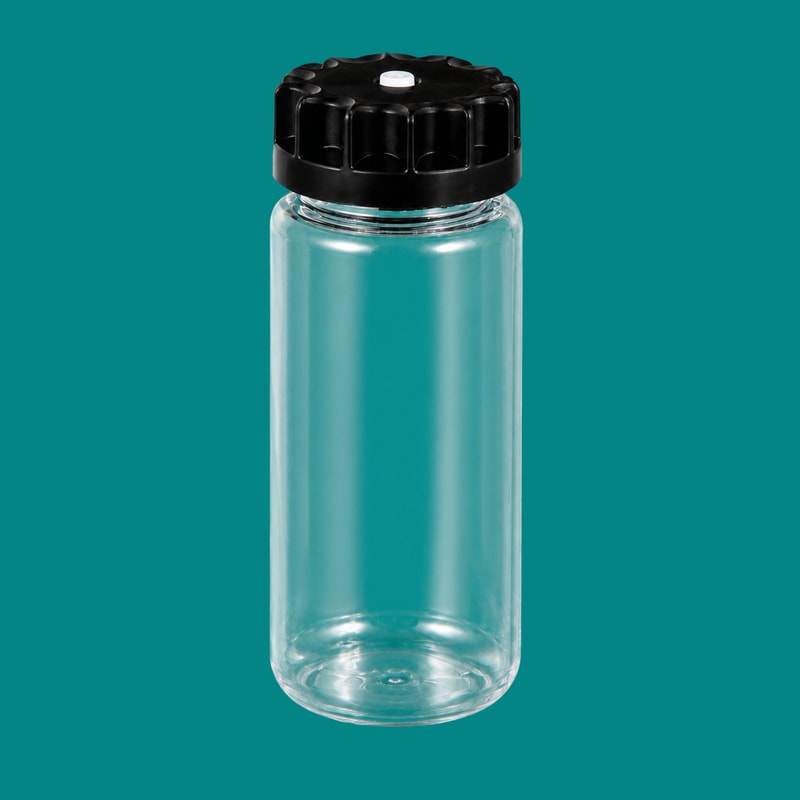

| Black double cap | 37.5 | 61.8 | 130 | |
| Gray single cap | 37.2 | 60 | 122.7 | |

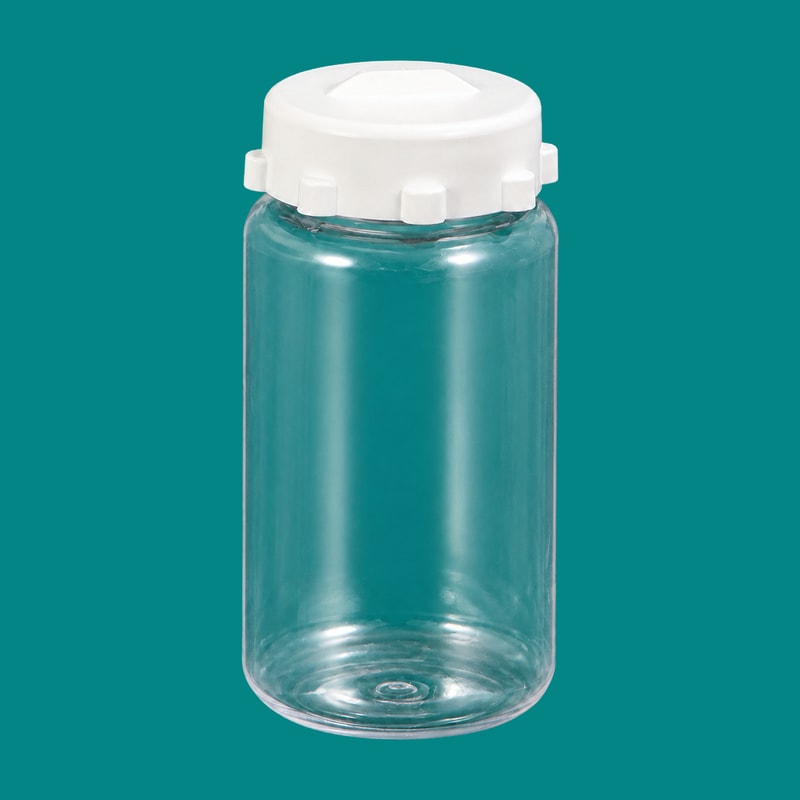

| Eight-lug cap | 37.5 | 61.5 | 126 | |
| White cap | 37.5 | 69 | 173 | |
| Wide-mouth clear cap | 52 | 72.5 | 154.5 | |
| Wide-mouth clear cap | 52 | 69 | 167.2 | |
| Clear cap | 37 | 69 | 169.1 | |
| White cap | 53 | 69.5 | 158.3 | |
| Wide-mouth clear cap | 52 | 74 | 168 | |
| Black double cap | 37.5 | 69 | 179 | |
| Gray single cap | 37.2 | 73.8 | 170.8 | |
| Gray double cap | 53 | 69.8 | 169.5 | |
| Eight-lug cap | 37.5 | 73 | 173 | |
| White cap | 37.5 | 73 | 173 | |

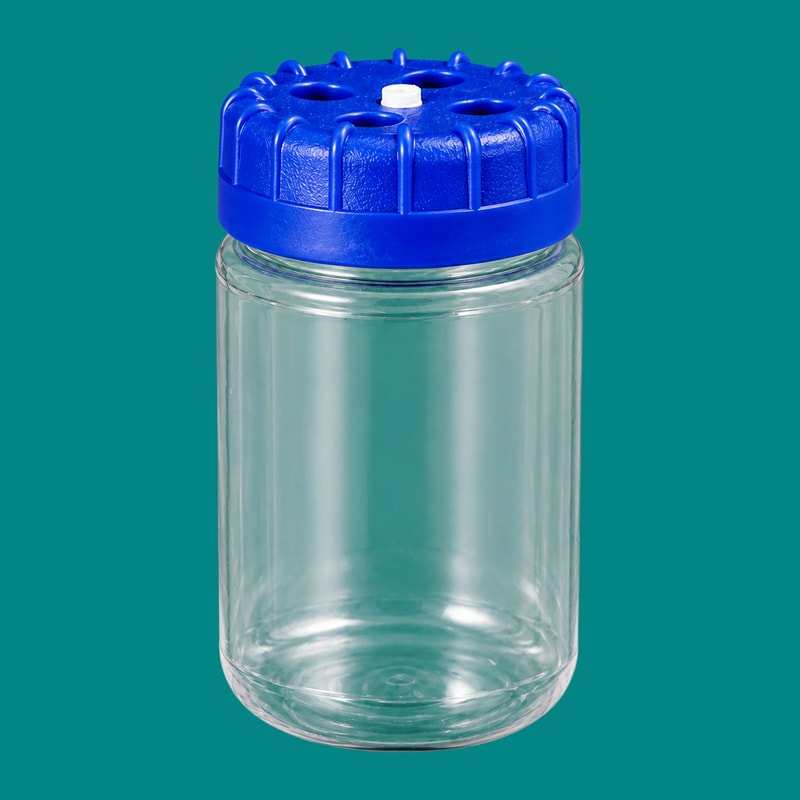

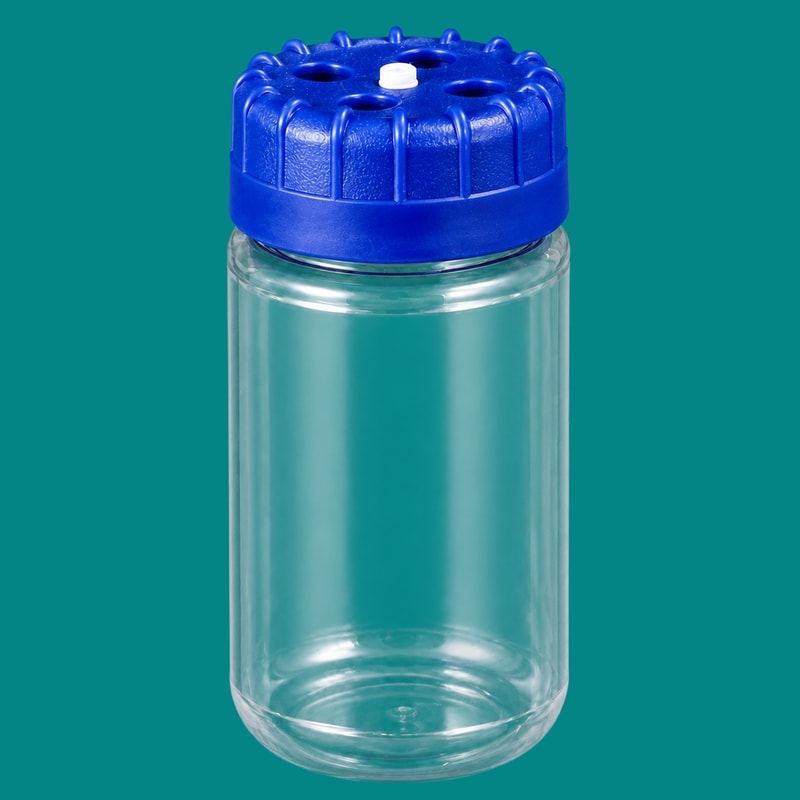

| Blue four-port double cap | 73.4 | 97 | 169.7 | |
| Blue four-port double cap | 73.4 | 97 | 187.7 | |
| Flat white cap | 52 | 95 | 176 | |
| Clear cap | 64 | 102 | 173 |
Product description
Polycarbonate is the body material for this 200 mL to 1 L range used in laboratory sample separation. The PC containers hold liquids for centrifugation and are also referred to as centrifuge vessels.
Services & Certification
Mold Design
Sterilization Requirements Review
Packaging Design
Testing Support
ISO 13485:2016
